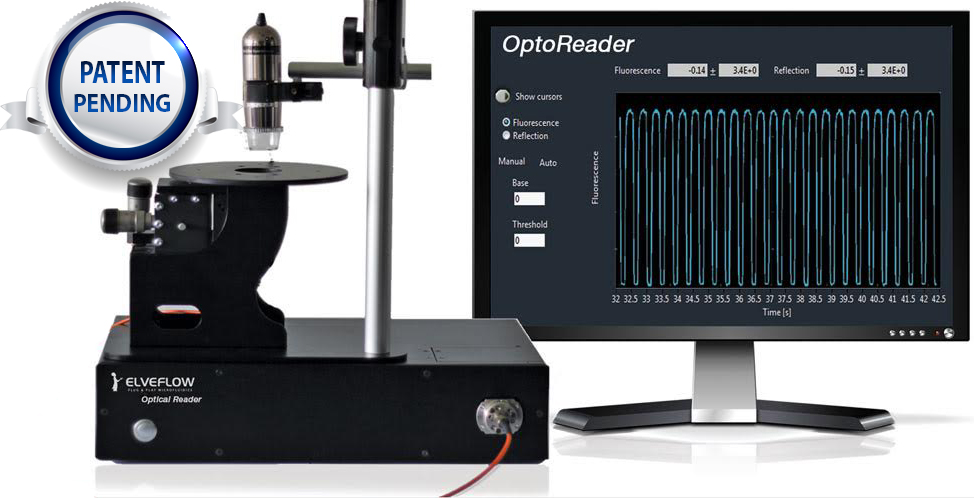

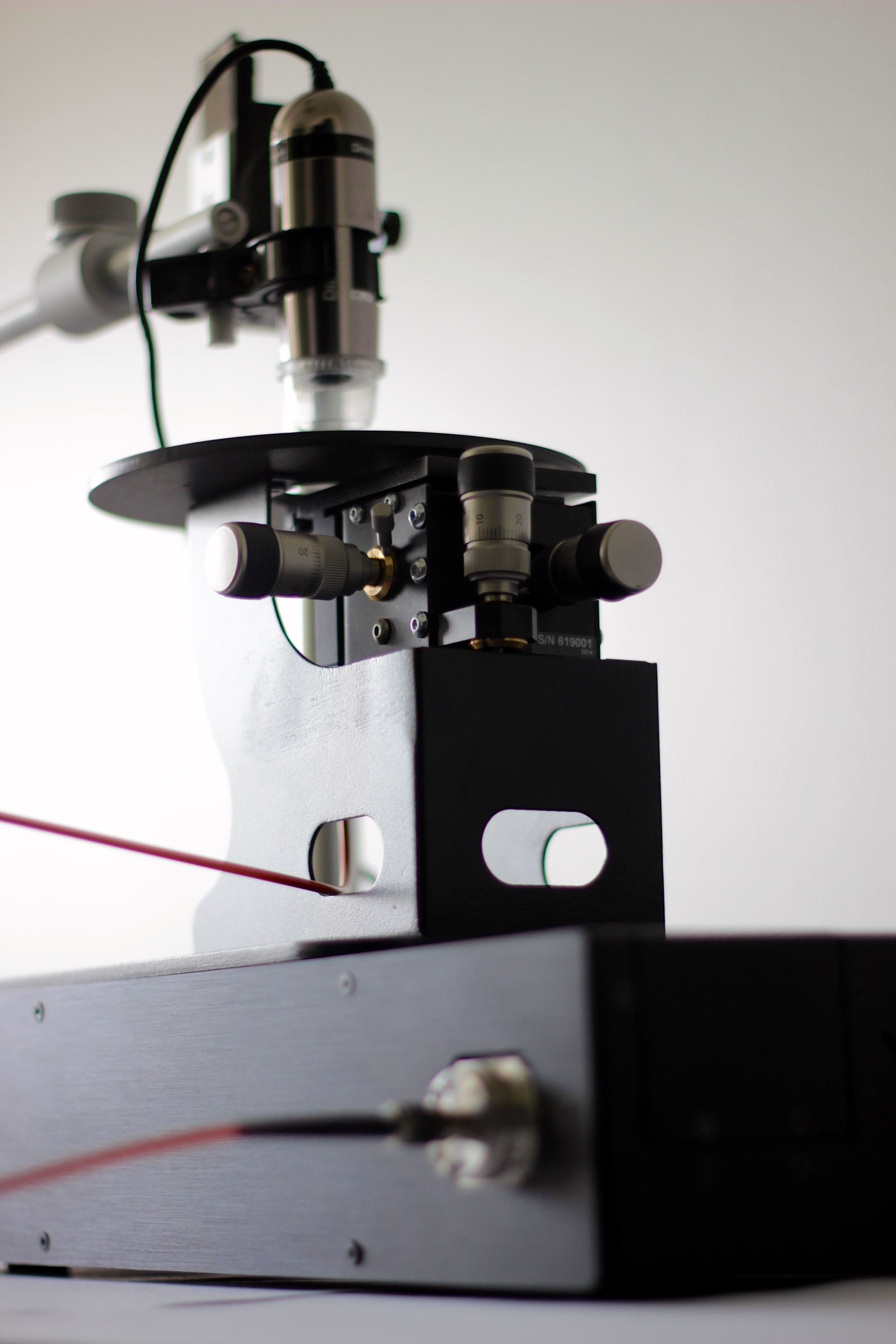

Microfluidic Optical Reader OPR
Compact Platform for Fluorescene Quantification
Brand: Elveflow
Contact Us for better pricing.
Warranty Details
ATTRIBUTES
- High sample rate: 100 000 samples/s
- High sensitivity: refer to the technical specifications
- Lock-in detection capability: to eliminate constant background

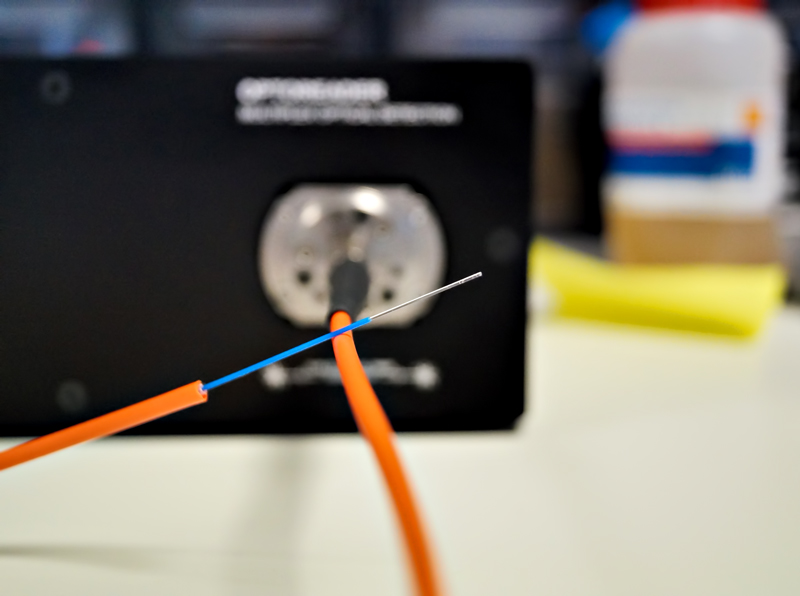

- Compact design: the use of optical fiber allows low footprint and versatile integration
- Plug & Play: USB computer connection, empowered by the Elveflow software suite (ESI)
- Interoperability: TTL source trigger
APPLICATION FIELDS
Microfluidics, fiber optic sensor, analytical or bio chemistry, biology, real-time inspection (food, pharmaceutics, etc), aerospace, etc
APPLICATION NOTES

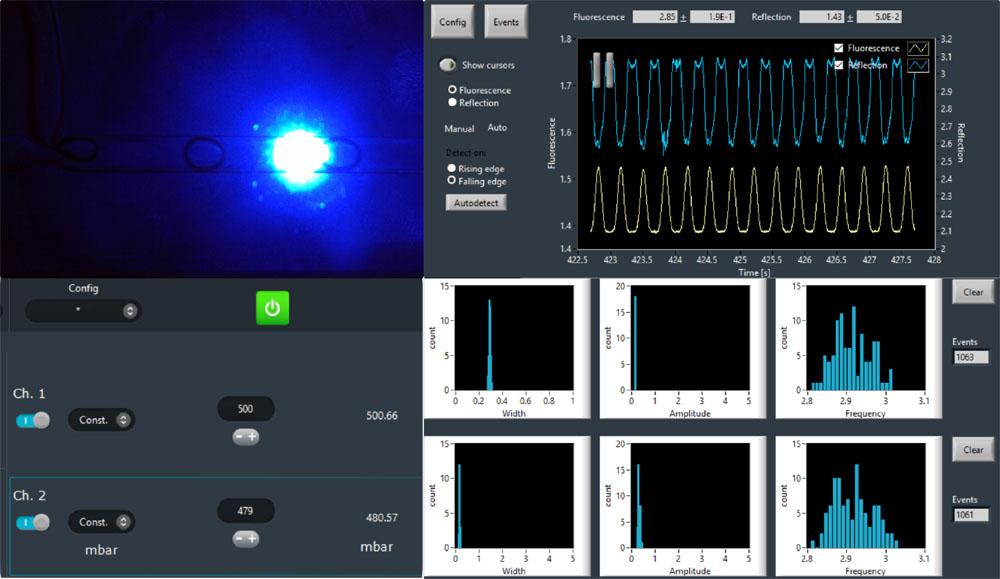

- Droplets counting
- Micro-particles detection
- Fiber optic sensor of pH
- Measurement of fluorophore concentration
Specification :
| Excitation Wavelength | 365nm, 470nm, 530nm, 590nm, 625nm |
| Fluorescence Filter Set | DAPI, FITC, TRITC, Texad Red, Cy5 |
| Power | 0 - 1.5 mW (470nm LED) |
| Pulse Duration (Pulse Mode) | 10 µs - 10 s |
| Frequency (Lock-in Mode) | 50 Hz - 10 kHz |
| Acquisition Frequency | 0 - 100 kHz |
| Acquisition Resolution | 16 bits |
| Typ. Acquisition Dynamic | 84 dB |
| Reflection Offset Resolution | 100 pW |
| Reflection Min. Noise | 6 pW (0-360 pW range) |
| Optical Fiber Diameter | 50 µm, 200 µm, 400 µm |
| Optical Fiber Numerical Aperture | 0.50 |
| Focalized Spot Diameter | 36 µm, 143 µm, 285 µm |
| Focalized Spot Numerical Aperture | 0.6 |
| Size Lxlxh (mm) | 346 x 253 x 124 |
