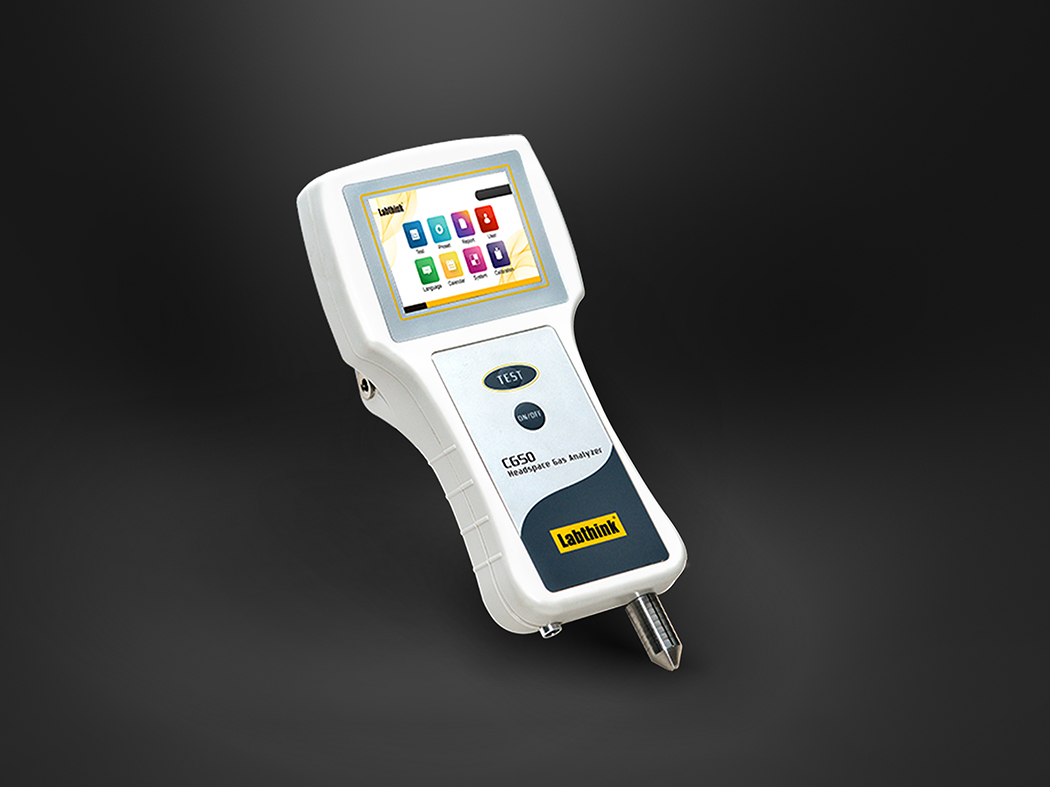

C650M Headspace Gas Analyzer

Product Features

• Handheld and portable design, easy-to-operate with one hand, suitable for tests on production line
• Auto shutdown for energy saving
• One-button calibration, simple and efficient
• Components and parts are supplied by global well-known manufacturers, which guarantee stable performance of the instrument
• Protective cover for sampling probe to ensure the safety of the operator
• Embedded gas sensors for accurate analysis of the gas contents inside flexible or rigid packages
• Embedded pressure sensor for accurate determination of the vacuum degree inside the package
• CO₂ sensor uses NDIR technology, patented solid state LED, detector and gold-plated optic components
• The sensors are supplied by globally well-known manufacturers, which have ultra-high precision, low fault rate and long service life
• Industrial grade touch screen, one button operation, intuitive operating interface, remote upgrade & maintenance
• Chinese and English language operating system can meet different requirements of the users
• Automatic data storage, power failure memory to prevent data loss
• Up to 1200 test results can be stored
• Equipped with wireless micro-printer for convenient data printing (optional)
• Equipped with standard USB ports and professional software for convenient PC connection and data transfer (optional)

Test Principle

The gas inside the test package is brought to the gas sensor by the air pump. The instrument analyzes the volume of oxygen and carbon dioxide (optional) contained in the sample gas by calculating the electrical signals generated by the gas sensor. When the preset condition is met, the test is completed and the system records the oxygen and carbon dioxide (optional) concentration.
