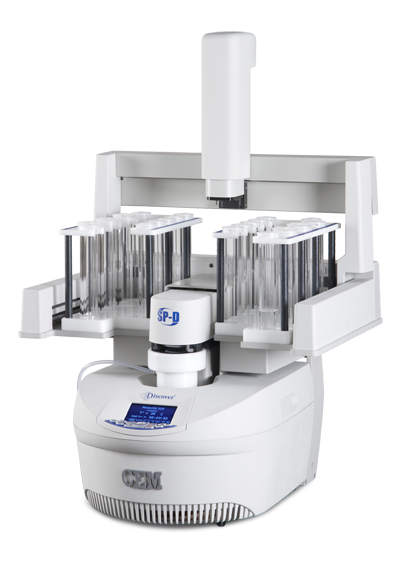

Discover SPD Automated Microwave Digestion System

Discover SPD Automated Microwave Digestion System

Discover SP-D is the world's only automated sequential microwave acid digestion system. This system produces a clear aqueous digest for elemental analysis by ICP, ICP-MS, or AA. Since each vessel can have its own method, you can mix and match samples and acids within the automation rack, providing your laboratory great flexibility. Digestion time is 10 minutes or less providing rapid turnaround and the ability to accommodate rush samples. Unattended operation of the system allows your analyst to work on other tasks, thereby improving your laboratory's workflow.
Pricing & Availability Download Catalogue CEM
Brand: CEM
Contact Us for better pricing. Warranty Details

Precise & Efficient Energy Delivery - The Discover SP-D's Focused™ microwave cavity produces a highly defined and extremely homogeneous microwave field. This cavity design enables the system to process samples faster and more reproducibly than batch style systems

Faster Digestions, Rapid Cooling - CEM's patented PowerMAX™ Cooling provides the ability to cool the vessel rapidly and avoid many exothermic reactions that can occur during digestion. In addition, it delivers rapid cooling after digestion, allowing the Discover SP-D to process samples in as little as 10 minutes per sample.

The Industry's only Actively Venting System - Batch systems use vessels that vent once the vessel reaches a set pressure. With CEM’s patented Activent® Technology, the Discover SP-D automatically measures pressure and controls when the vessel vents. This enables discreet venting at pre-set limits, preventing loss of elements, including volatiles such as mercury and arsenic.

Specification :
Snap on caps, no tools needed. CEM’s patented snap-on cap technology eliminates the need for tools. Add the sample, the appropriate acid(s), snap the cap on the vessel, and place it into the Discover® SP-D™. Clamps and torque wrenches are not required
Versatile acid digestion systems Their versatility comes from their ability to run one sample by manually loading, or by utilizing the robotic arm (Explorer) to load many samples automatically for you. Whether you’re digesting one sample, or many, a Discover SP-D will quickly and easily digest your samples.
Time of digestion The Discover SP-D can fully digest one sample in only 10 minutes. This provides instant sample preparation for your priority samples.
Capacity Digest up to 48 samples in a single run
Software Synergy-D Software. Real-time display of temperature, pressure, and microwave power Pre-installed methods for many sample types Sample queues that mix methods and sample types in a single run 21 CFR Part 11 Compliant Automatically generate a report of run conditions for every sample, not the batch
Power Output 300 Watt magnetron
Power Requirements 100-120 VAC, 60 Hz 200-240 VAC, 50 Hz
Pressure Activent® Self-Venting Technology
Air Cooling Min 30 psi/2 bar (3 cfm flow) user-supplied for simultaneous cooling (PowerMax™) and rapid cool down
Automation 24-Position available for SP-D 10/35 and 80 36 & 48-Position autosampler is available for SP-D 10/35
Stirring Electromagnetic variable speed
