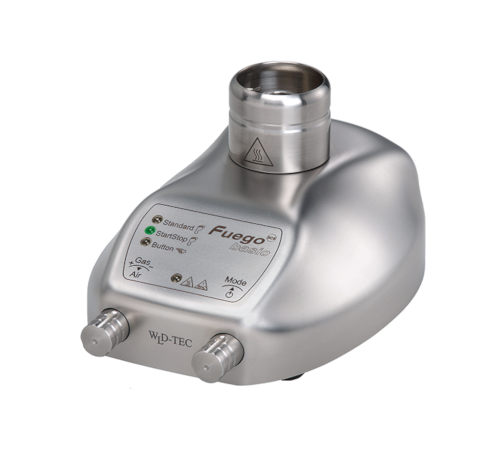

The basic model of the Fuego series sets new standards in laboratory gas burner technology. With its innovative design, this safety laboratory burner is suitable for all flame-related applications in the laboratory.
Simply safe to operate
The Fuego SCS basic can be operated safely with the button function or a foot pedal.

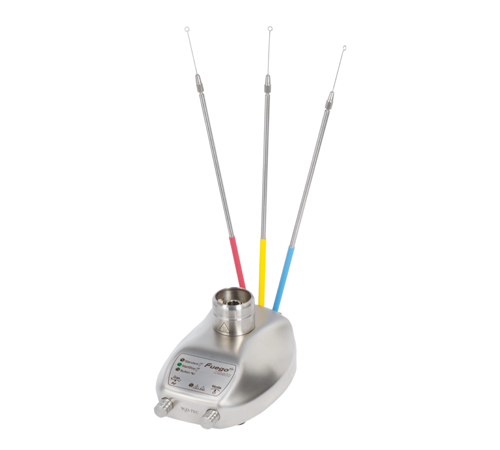

Three different programs are available: flexible start-stop functions or the conventional foot pedal control for short-term applications. The Fuego SCS basic is also suitable for connection to the fully automatic inoculation loop carousel autoloop Pro.
Flaming with button function
WLD-TEC now offers the Fuego SCS basic an additional alternative to the safe handling of the flame. With the button function, the flame can be started and stopped simply by pressing the function button.
Striking: the unmistakable shape.

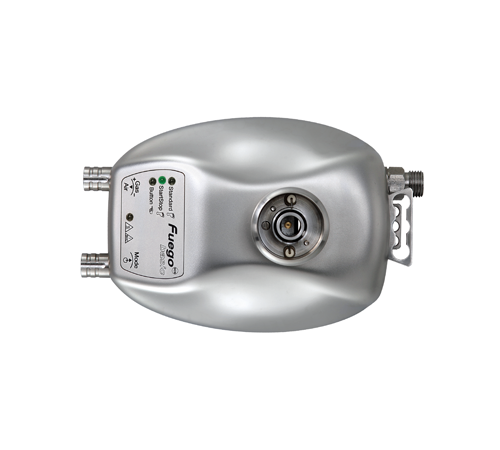

The Fuego SCS basic with the dimensions 103 x 49 x 130 mm (W x H x D) extremely compact.
The low housing enables comfortable working; the streamlined design reduces the disturbance of the air flow of a clean room workbench to a minimum. The Fuego SCS basic can also be usedEasy to clean - a laboratory gas burner without slots, corners and edges. Even heavy soiling is not a problem. Spilled fluids flow out through a channel, solids can be easily removed by opening the burner shaft. The removable burner head can even be easily disassembled into its individual components for thorough cleaning. The flame can be precisely regulated with the dual button for gas and air adjustment.
The SCS safety control systemmeans state-of-the-art safety technology that continuously analyzes all potential dangers and, if necessary, initiates protective measures - such as interrupting the gas supply. In addition to ignition and flame monitoring and overtemperature protection, the new safety package offers continuous burner head monitoring BHC. BHC reliably detects burner head contamination from liquids or foreign bodies and also monitors the correct assembly of the burner head.
Outstanding passive safety: after a long period of use, a residual heat indicator signals that the burner head is still hot and thus protects against burns.
Excellent energy values ??reduce gas consumption. This increases the burning time when using gas cartridges.
All around made of stainless steel and with fireproof controls, the Fuego SCS basic withstands even extreme laboratory conditions.
Fuego SCS basic - ideal in clean room workbenches and in the laboratory.
Foot pedal programs :
Standard (flame with foot pedal depressed) start-stop with monitoring timer, 60 min start-stop with monitoring timer, 60 min
Safety Control System (SCS) with gas safety shutdown:
Ignition, flame and temperature monitoring Contamination and assembly monitoring of the burner head (BHC) automatic device shutdown after 4h residual heat indicator
1/4 “left with gas
inlet filter II2ELL3B / P: natural gas E / LL, 18 - 25 mbar liquid gas, 47.5 - 57.5 mbar
70 g / h liquid gas, 95 l / h natural gas (LL)
Continuous cartridge operation:
CV 360 - 40 min express 444 - 50 min CG 1750 - 150 min C 206 - 170 min CP 250 - 210 min CV 470 - 370 min
