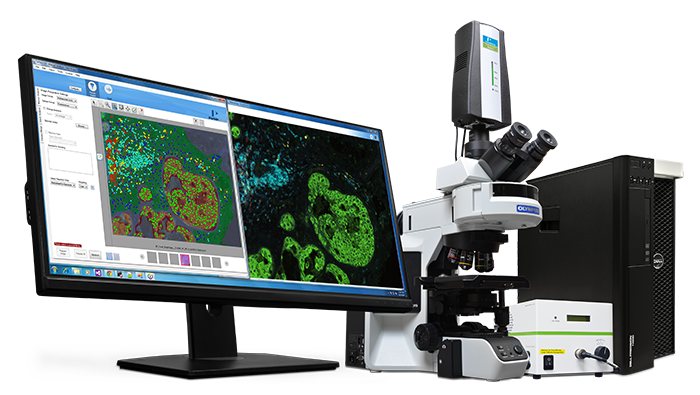

Mantra 2™ Quantitative Pathology Workstation
The Mantra 2™ Quantitative Pathology Workstation incorporates multispectral imaging technology, image acquisition and analysis with the inForm® software, and can be used with a variety of stains including Akoya’s Opal™ reagent kits.
Brand: Akoya Biosciences
Contact Us for better pricing.
Warranty Details
Features:
- Visualizes, analyzes, quantifies and phenotypes immune cells in situ in solid tissues
- Ideal for assay development, freeing up higher throughput systems, such as the Vectra Polaris
- Intuitive workflow that uses LED light source to maximize efficiency for the research pathologist
- Compact system that fits on your benchtop
- Eye-piece for easy visual checking of work as you go
- Automated Brightfield and multispectral fluorescence capabilities
- Optional 9 color multispectral fluorescence upgrade path
- Liquid crystal tunable filter (LCTF) technology
- Phenochart™ whole slide viewer for slide navigation provides context for identification of regions of interest within a digital pathology workflow
- Supports Akoya's Phenoptics™ workflow solution for cancer immunology research
Specification :
| Imaging Modes: | Brightfield and fluorescence, multispectral and color imaging |
| Microscope: | Customized research-grade microscope with: • 8-position motorized epi-fluorescence filter turret• 7-position motorized objective nosepiece•Active management of intensity per-objective in Brightfield• Integrated ergonomic controls on microscope base |
| Camera Type: | Multispectral 12-bit camera using cooled scientific-grade CCD |
| Camera Spectral Range: | 440 – 760, 780 nm for Brightfield imaging and Opal fluorophores |
| Objectives (Apochromatic): | 4X / 0.16 NA, 10X / 0.40 NA, 20X / 0.75 NA (40X / 0.95 NA optional) |
| Pixel Resolution: | 0.25 micron (optional 40X), 0.50 micron (20X), 1.0 micron (10X), 2.5 micron (4X) |
| Filter Cubes: | DAPI, FITC, Cy3, Texas Red, Cy5 |
| Filter Cubes: | Optionally configured with Opal 780, Opal 480, or Quad-band for visualization |
| Fluorescence Illumination: | 6 Channel LED, >20,000 hour bulb life |
| Brightfield Illumination: | High-output, color-balanced white LED |
| Width x Height x Depth: | 163 x 76 x 56 cm (Mantra workstation including: monitor, computer, keyboard/mouse, fluorescence illuminator) |
| Width x Height x Depth: | 145 x 76 x 56 cm (as above without computer) |
| Weight: | 24 kg (Mantra only) |
| Mantra Instrument - AC Input Power: | 100 - 230 VAC, 1.0A, 50/60 Hz |
| Fluorescence Illuminator - Input Power: | 100 - 240 VAC, 2.0A, 50/60 HzTable |
