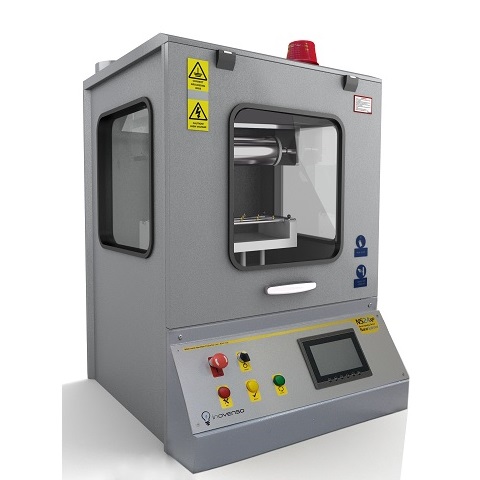

Multi-Nozzle Electrospinning System Nanospinner 24
The Nanospinner 24 is designed to develop sample nanofiber membranes used primarily in textile and air Filtration applications, but also in the chemical, medical, construction and agriculture industries. The model is specifically suited to universities and industrial R&D departments engaged in electrospinning over long time intervals requiring in-situ parameter optimization. This flexible, long-term electrospinning capability is supported by a number of customized accessories:
• Bottom-up spinning
• Up to 12 concurrently feeding nozzles
• 376mm by 280mm coating area
• High speed rotating drum up to 2000RPM
• Adjustable horizontal movement between 30-80mm to get more uniform membranes
• Automatic adjustable spinning distance between 30-230mm
• Extra safety options such as safe-door and warning light to prevent danger from high voltage exposure
| General Description | |
| Model | NanoSpinner24 |
| Description | Advanced Multi Nozzle Electrospinning Unit |
| Spinning Type | Bottom-Up Spinning |
| Produced in | Turkey |
| Construction | |
| Chassis | Electrostatic Painted(RAL7031+RAL7024) Sheet Metal |
| Feeding Area Material | PE 1000(High Density, Chemical resistant) |
| Collector Material | 7000 Series Aluminium Alloy |
| Windows | 4 mm Transparent Glass |
| Total Weight | <150kg(5291oz) |
| Dimensions | 705mm(27.76”) x 630mm(24.80”) x 1060mm(41.73”) |
| High Voltage Power Supplier | |
| Voltage Range | 0- 40 kV |
| Voltage Precision | 100V |
| Voltage Display | LED Screen |
| Max Current | 0.75 mA |
| High Precision Micro Pump | |
| Flow Rate | 0.01-1000ml/h |
| Flow Rate Precision | 0.01ml/h |
| Flow Rate and Volume Display | LED |
| Available Syringes | Standard 1, 5, 10, 20 and 50ml |

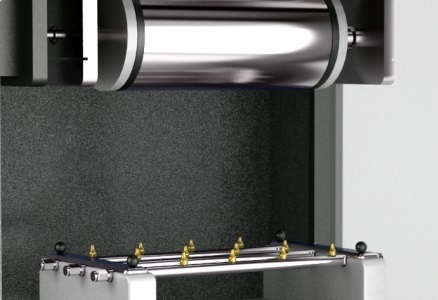

| Feeding Area | |
| Number of Nozzle on Each Feeding Pipe Set | 4 pcs |
| Number of Feeding Pipe Set | Up to 3 Sets |
| Number of Nozzle | Up to 12 Nozzles |
| Single Nozzle Production | Available |
| Feeding Pipe Material | Aluminium |
| Nozzle Material | Electrically Conductive Brass |
| Nozzle Inner Diameter | 0.8mm(0.315”) |
| Minimum Required Solution for Single Nozzle Feeding | 1ml |
| Minimum Required Solution for Each Feeding Pipe Set | 9.35ml |
| Minimum Required Solution for Full Loading | 28.05ml |
| Collecting Area | |
| Collector Type | Rotating Cylinder and Constant Plate |
| Cylinder Material | Aluminium |
| Constant Plate Material | Aluminium |
| Cylinder Driving Method | BLDC Motor |
| Cylinder Dimensions(D x L) | 120mm(4.72”) x 280mm(11.02”) |
| Fiber Deposition Area | 376.8mm(14.83”) x 280mm(11.02”) |
| Cylinder Speed | 100-2000RPM |
| Cylinder Surface Speed | Max. 12560mm/sec(494,3inches/ sec) |
| Coating Homogenity System | X-axis repetitive motion |
| Stroke of Coating Homogenity System | Adjustable Between 30mm(1.18”) and 80mm(3.15”) |
| Speed of Coating Homogenity System | Adjustable Between 0 and 8.3mm/ sec(0.33inches/sec) |
| Spinning Distance | |
| Distance Between Nozzle and Collector | 30mm(1.18”) - 230mm(9.06”) |
| Distance Adjustment Precision | 1mm |
| Distance Adjustment Method | Linear Actuator |
| Distance Adjustment Speed | Constant / 6.6mm/sec(0.26 inch/ sec) |
| Distance Indicator | Digital |
