N-EVAP Nitrogen Evaporator

N-EVAP Nitrogen Evaporator

Organomation's N-EVAP nitrogen evaporators are extremely well suited for numerous sample preparation methodologies. Our nitrogen evaporators utilize adjustable nitrogen blow down technology allowing for full control of nitrogen flow to samples, with no wasted nitrogen gas. We combine this technology with uniform heat applied efficiently through either water or dry baths. This technique saves labs money by simultaneously maximizing solvent evaporation volume and rate.
Pricing & Availability Download Catalogue Organomation
Brand: Organomation
Contact Us for better pricing. Warranty Details
  • Five models are available: 6-Positions, 12-Positions, 24-Positions, 34-Positions, 45-Positions
  • You can choose your N-EVAP nitrogen evaporators to come with water bath, dry bath (for 6, 12 & 24 positions) or without heating unit (comes with a base and stand assembly only)

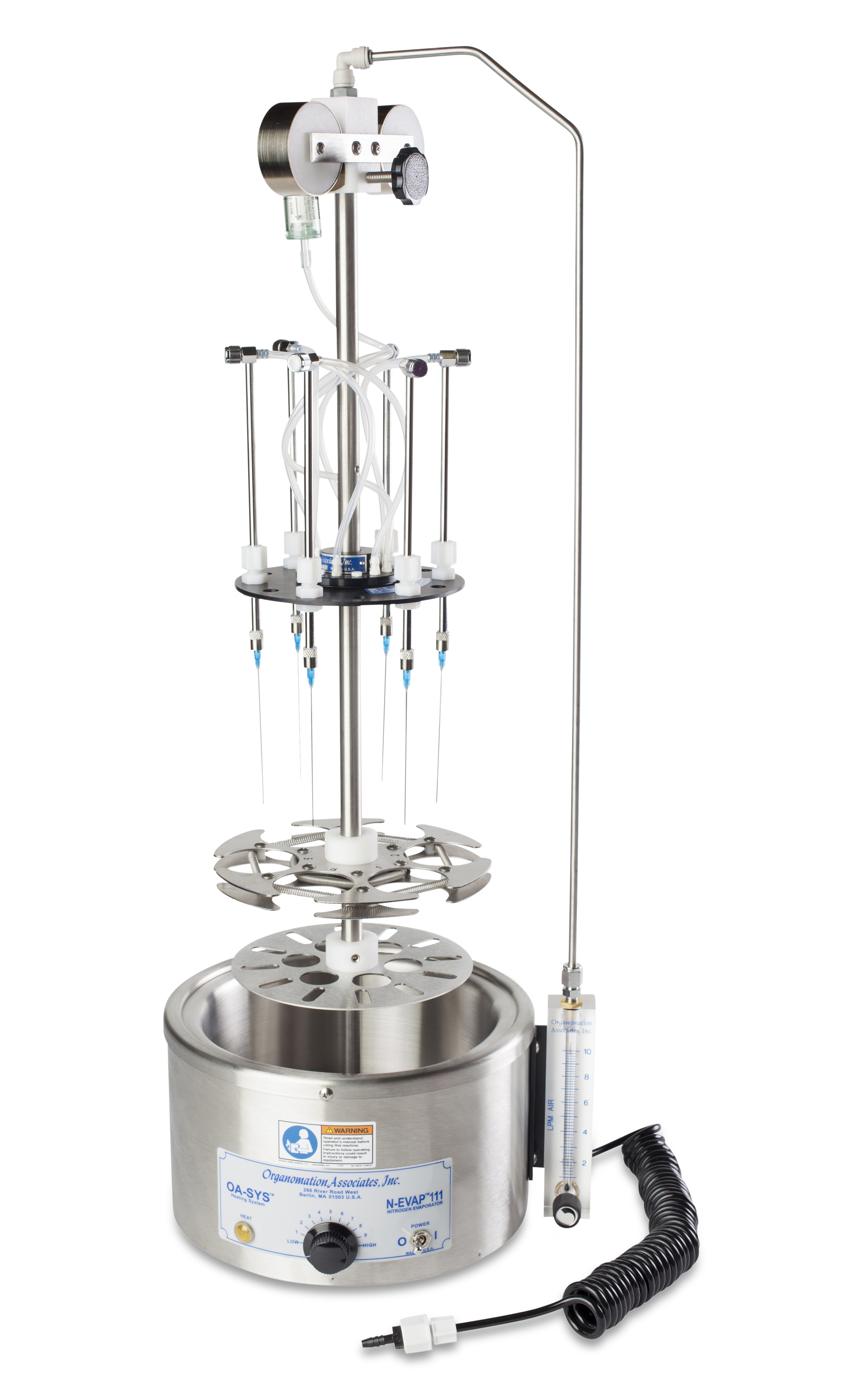

  • Small Footprint: 6-Positions and 12-Positions N-EVAPs have the smallest footprint of all the N-EVAPs
  • Flexible:  A large sample holder option can be added to accommodate vials with a larger outside diameter in the range of 30-56 mm
  • Gentle:  N-EVAP nitrogen evaporators combine nitrogen blow down with a heated bath to gently concentrate delicate samples
  • Individualized Control: Gas flow can be controlled at each sample position via needle valves

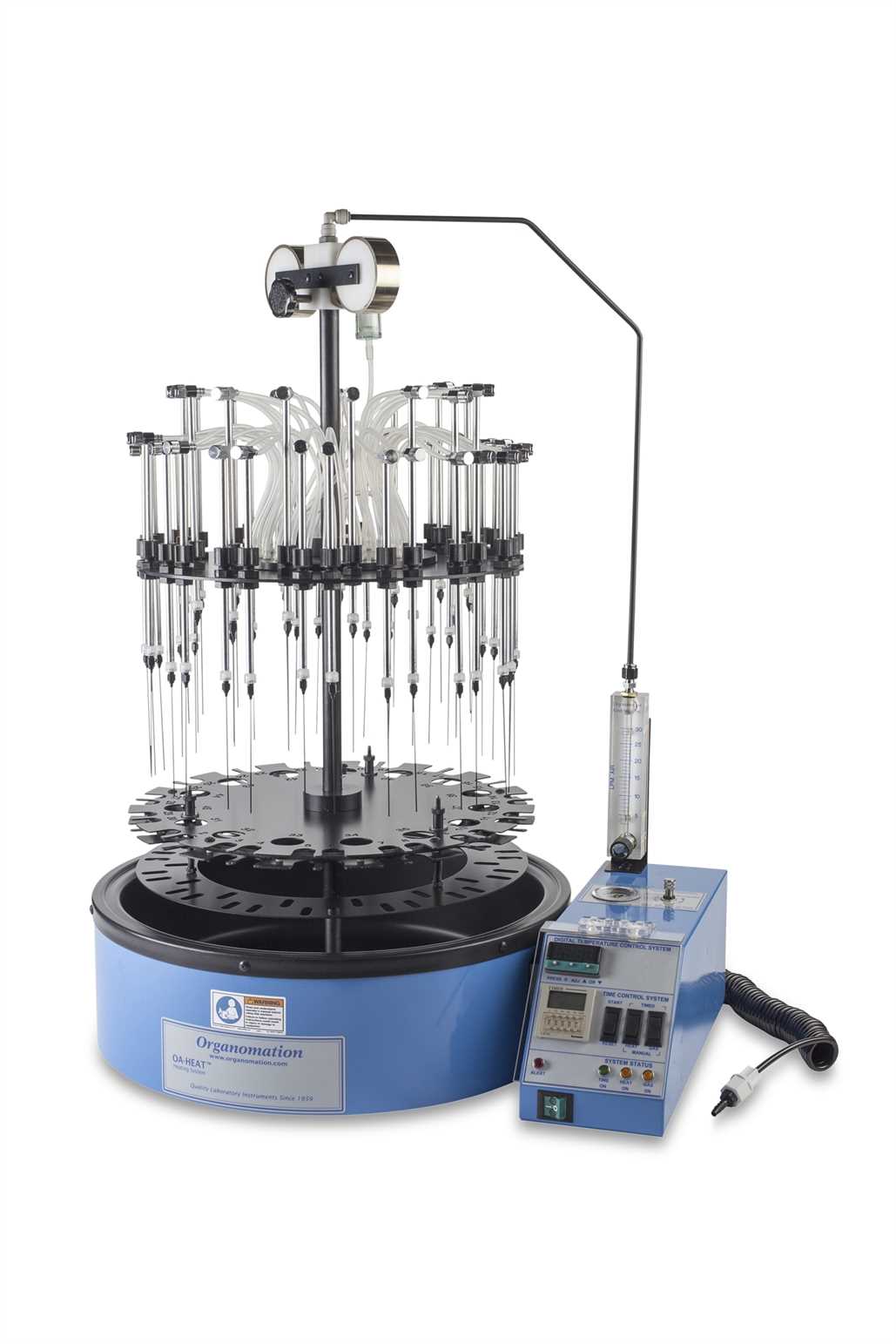

  • Digital Controls: For 34-Positions and 45-Positions N-EVAPs, the water bath comes standard with a side control box which contains a pressure regulator, timer, digital temperature controller and safety control cover plate
  • Nitrogen filter
  • High pressure phthalate free tubing for safety
  • High temperature limit switch for safety
  • Dual band spring hoist assembly (except in dry bath model)
  • Precision needle valve tube assembly
  • Needles, 4”x19 gauge with chrome plated brass hub and stainless steel shaft
Specification :
Sample Holder Layout Circular
Gas Manifold Layout Single Ring / Dual Rings for 45-Positions Only
Tube Diameter 10-30mm OD / 45-Position: 30 slots for 10-19mm OD (Outer Ring), 15 slots for 10-30mm OD (Inner Ring)
Gas Flow Meter 6-Position: 0-5 L/min ; 12-Position: 0-10 L/min ; 24-Position: 0-20 L/min ; 34-Position: 0-30 L/min ; 45-Position: 0-30 L/min
Water Bath Temperature Range 30-90°C
Dry Bath Temperature Range 40-130°C
