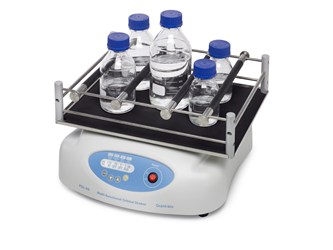

PSU-20i Orbital Shaking Platform

PSU-20i Orbital Shaking Platform

The Grant bio PSU-20i is a powerful and efficient microprocessor controlled multi-functional orbital shaker providing all that is required - rotation, reciprocation and vibration - for thorough mixing in flasks, beakers, Petri dishes and other laboratory vessels.
Pricing & Availability Download Catalogue Grant Instruments
Brand: Grant Instruments
Contact Us for better pricing. Warranty Details
  • Orbital motion, reciprocation and vibration functions all in one product
  • Reliable direct drive system
  • Fully programmable sequence of functions
  • Simple to set up and easy to operate
  • Interchangeable platforms, including multi-level platform option
  • Loads up to 8 kg
  • Orbital and reciprocating speed: 20 to 250 rpm
  • Reciprocal rotation: 30 to 360º turning angle
  • Vibration: 0 to 5º turning angle, programmable in a burst of 0 to 5 seconds
  • All mixing functions - orbital motion, reciprocation and vibration - can be set for continuous or timed operation, or be linked together in different combinations to ensure optimum and accurately repeatable mixing conditions for your application
  • Direct drive system
  • Brushless motor for longetivity
  • Powerful, reliable and exceptionally quiet motor -  combines 8 kg loading capacity with consistent even motion and quiet operation
  • Very easy to operate, with simple set-up of multi-segment programs via push buttons and the 2-line LCD status display. Microprocessor controls for making corrections without stopping the program.
  • Universal detachable platform can accommodate vessels of different shapes and sizes for maximum flexibility.
  • Optional flat platform PP-20 with non-slip mat accommodates low profile containers. Can be extended to create up to four levels to maximise the throughput per cycle.
Specification :
Speed (depends on loading) rpm 20 to 250
Orbit mm 20
Maximum load kg 8
Timer, with automatic switch-off 1 min to 96 hours
Motion timer (orbital/reciprocal modes) sec 0 to 250
Motion timer (vibration mode) sec 0 to 5
Display 2-line 16 character LCD
Angle (reciprocal mode) ° 0 to 360
Angle (vibration mode) ° 0 to 5
External power supply Input AC 120-230V, 50/60Hz Output DC 12V
Input voltage 12
Power consumption W 40 (3.2A)
Operating temperature range °C 4 to 40
