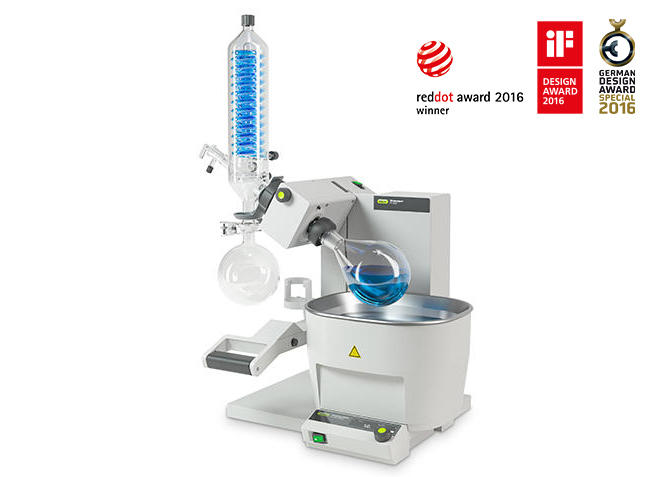

Rotavapor® R-300 Convenient and Efficient Evaporation

Rotavapor® R-300 Convenient and Efficient Evaporation

The R-300 meets the highest expectations in convenience and versatility. Its modular design allows extension of the Rotavapor® R-300 to a fully integrated system where a central interface regulates each component.
Pricing & Availability Download Catalogue Buchi
Brand: Buchi
Contact Us for better pricing. Warranty Details

Convenient

  • Comfortable flask and vapor duct removal thanks to easy to use Combi-Clip
  • User-friendly operation due to ergonomic electric or manual lift
  • Immediate adjustment of heating temperature and rotation speed with intuitively positioned control knobs

Extendable and versatile

  • Easy plug & play extension to a fully integrated system including a central interface, vacuum pump and recirculating chiller according to your needs
  • Choice between 5 L high-temperature and 1 L fast-heating bath
  • Wide range of beneficial accessories available: seven different glass assemblies, safety shield, lid for heating bath, automatic distillation and automatic foam detection

 Reproducible

  • Precise operation control with integrated digital display of heating temperature, rotation speed and lift position
  • Traceability of all process parameters including data recording and charting with the optional Interface I-300 Pro
  • Instant alert with push notification on mobile devices in case of process deviation (with Interface I-300 / I-300 Pro only)
Specification :
End stop positioner Adjustable via button within a range of 170 mm (electronic) / 100 mm (manual) Prevents glass breakage and damages to heating bath pan
Patented multifunctional Combi-Clip Tool for evaporating flask fixation and removal, as well as vapor duct release Allows one handed flask removal
Immersion angle adjustable Adjustable within 7-stages enables the use of different flask sizes, adjustable for individual application
Safety stop (electronic lift only) Automatic operation stop by power failure Lifts flask automatically out of heating bath
2 lift speeds Moves quickly until 2 cm above close to depth stop, it than moves slowly to depth stop Allows a smooth operation
Earthquake safety Lug on backside for bath and Rotavapor® Enables fixation on lab bench
Lift height indication Position is digitally indicated on display of heating bath Allows reproducibility of parameter for future applications
Display Rotation speed (actual value), lift position (actual value) and heating bath temperature (set and actual value) displayed on the Heating Bath B-300 Base. Allows user to monitor all parameters at a glance.
