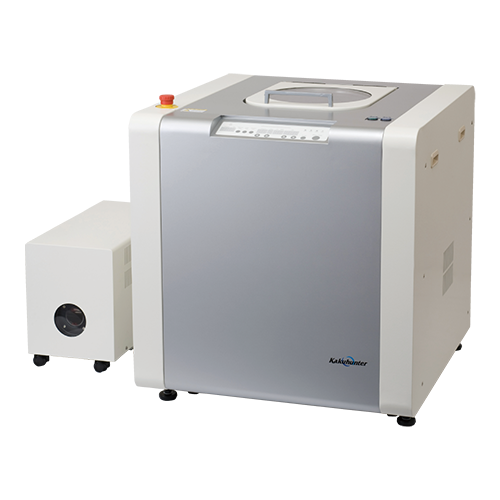

SK-1100TVSII Vacuum Planetary Centrifugal Mixer with Shifted Cup Tray

A planetary centrifugal mixer with a vacuum reduced pressure function suited for medium-scale production.

Pricing & Availability Download Catalogue

Contact Us for better pricing. Warranty Details

1100mL x 2 cups
Equipped with revolution and rotation individual speed control system
Adjustable ratio of revolution and rotation; 90 different speed combinations can be set
Shifted cup tray enhances mixing performance and shortens the mixing time, comparing to straight cup tray
Vacuum reduced pressure function makes the ultrafine air bubbles elimination possible
Model with straight cup tray is also available: SK-1100TVII. Contact us for more information

Specification :

Cup Size	1100mL x 2 cups / Less than 100mL various syringe / Less than 170mL various syringe
Other Container	Multiple containers and syringes can be used by using an adopter
No. of Revolution	9 stage setup
No. of Rotation	10 stage setup (however it can be restricted up to revolution speed)
Setup Time	10 – 300 seconds x 5 steps
Step mode	5 steps; 5 different kinds of motion pattern it can do continuous operation (on condition setup)
Condition Memory Funtion – User Setup Channel	90 channels
Condition Memory Funtion – Fixed Data Channel	10 channels
Power Supply	3-phase AC200V ± 10%, 50/60 Hz
Power Consumption	3.0kW
Outer Dimensions (W x D x H)	761 x 781 x 824 mm (vacuum pump is separately provided)
Weight	Approx. 260 kg (vacuum pump is separately provided)
