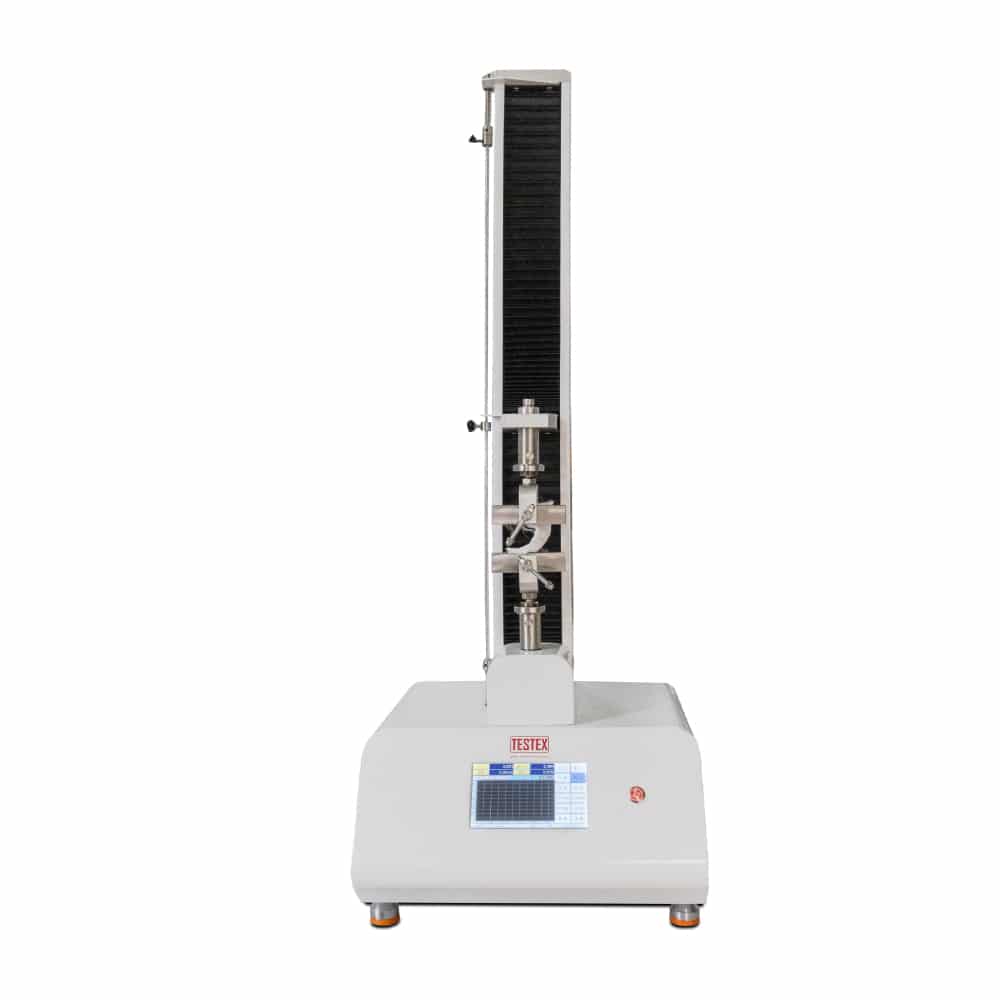

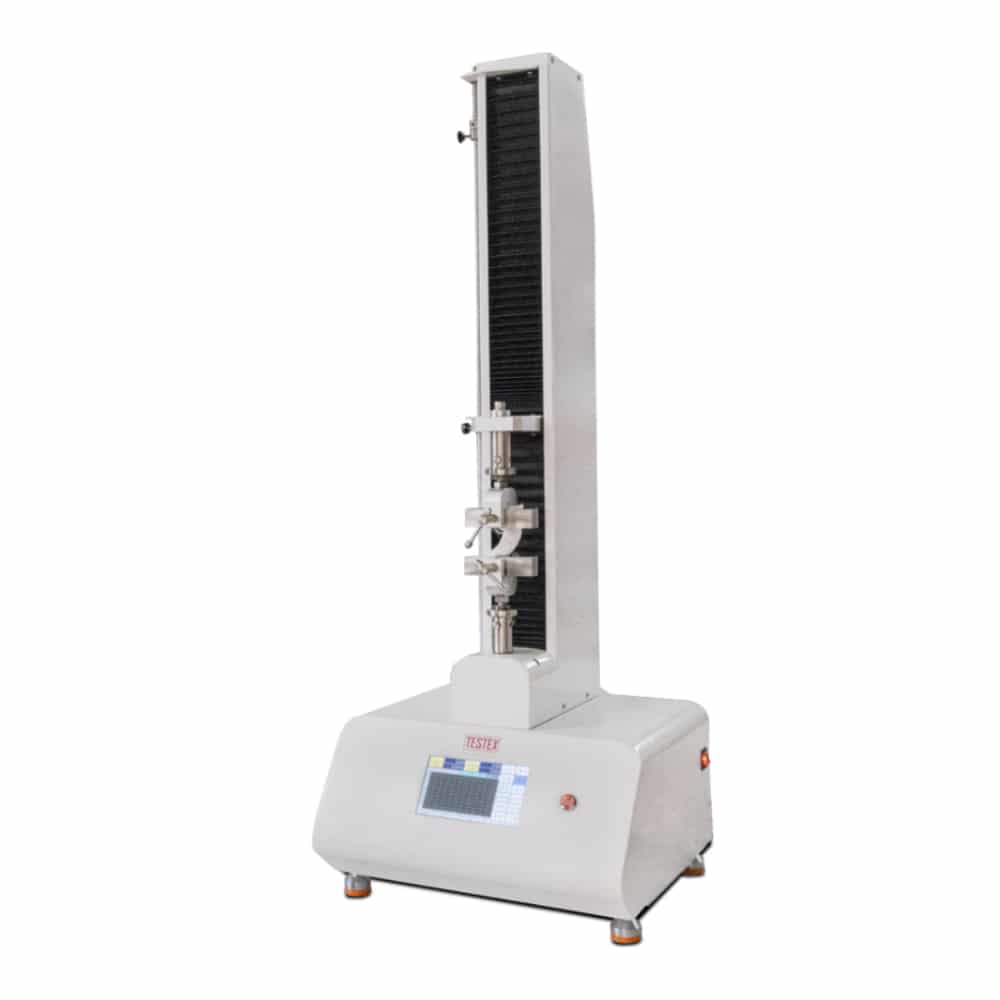

Textiles Tensile Strength Tester TU 001
Medical Textile Tensile Tester is used to determine elongation, compression rate, bending, tearing, peeling shear force, adhesive force, finished or semi-finished products (such as medical masks), ear hangers for medical masks, medical protective clothing, surgery Elongation of clothing, curtains, etc.
Brand: Testex Instrument
Contact Us for better pricing.
Warranty Details
Features
- Quality motor provides a stable force, ensuring the rate of extension is constant.
- The clamping structure is designed for easy-and-fast changing fixtures for different tensile testing applications.
Specification :
| Test range | - 980N (1% ~ 100% FS) |
| Test accuracy | ±1% (10%-90%) |
| Resolution | 1 N |
| Unit | kgf, lbf, N, KN |
| Speed range | (10~ 500) ± 2% mm/min |
| Max. stroke | 600 mm |
| Power | 220/110 V, 50/60 Hz, 500 W |
| Weight | 60 Kg |
| Dimensions | 520 * 580 * 1250 mm (L x W x H) |
| Packaging info | 570 * 620 * 1440 mm (L x W x H), 78 Kg |
| Standard | EN 14126, EN 14325 5.5, EN ISO 13935-2, EN 14325 4.7, EN 14325 4.9, ISO 13934-1, ISO 9073-4 |
