Laboratory Essentials
Hotplate Stirrer

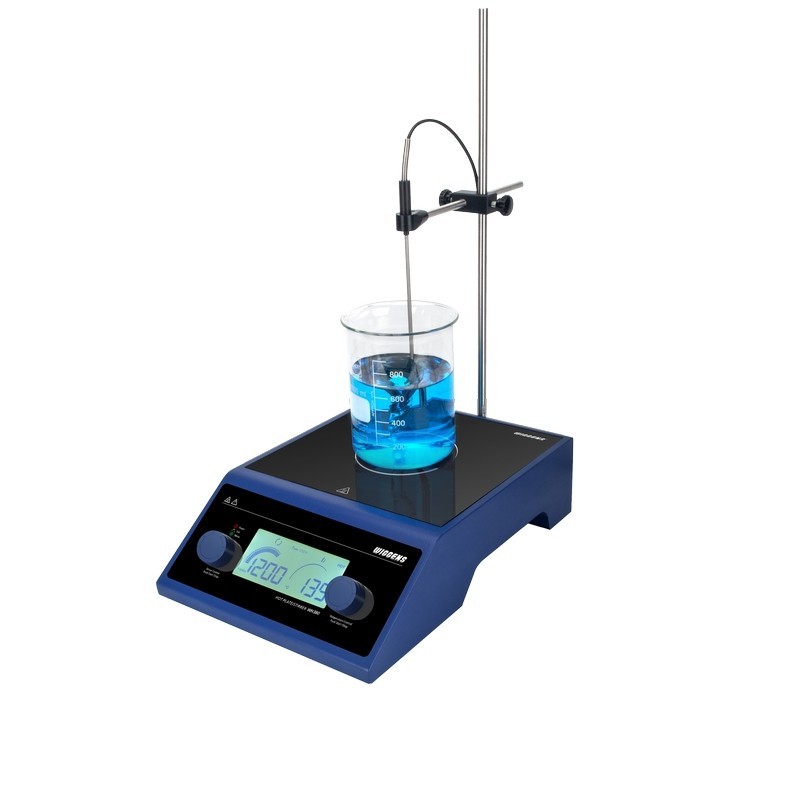

WH380 Digital Infrared Hot Plates / Stirrers
Heating Capacity 1.2KW [ 550°C], Speed Range :100~1200rpm
Brand: Wiggens
Contact Us for better pricing.
Warranty Details
Stirring, heating and controlling with WH380
* Corrosion-resistant Ceramic Glass top plate
* Excellent transmittance of the infrared light
* The top plate can resist up to 700°C thermal shocks
* Hermetically sealed, corrosion-resistant, solid casing
* Fast heating and excellent temperature stability
* External control by the connection of a Pt100 temperature sensor
* A high-temperature indicator warns the user and prevents burning injuries
* Compressed air connector optionally available for the use in aggressive environments
* Corrosion-resistant Ceramic Glass top plate
* Excellent transmittance of the infrared light
* The top plate can resist up to 700°C thermal shocks
* Hermetically sealed, corrosion-resistant, solid casing
* Fast heating and excellent temperature stability
* External control by the connection of a Pt100 temperature sensor
* A high-temperature indicator warns the user and prevents burning injuries
* Compressed air connector optionally available for the use in aggressive environments
Specification :
| Heating Capacity (kW) | 1.2 |
| Max. Set Temperature ( top plate) (°C) | 550 |
| Max. Set Temperature (with Pt100 sensor)(°C) | 40-300 |
| Temperature Stability (Pt100sensor)(°C) | ±1 |
| Min. Time to Boiling Point for 1L H2O (min) | 10(1L H2O) |
| Stirring Speed Range (rpm) | 100~1200 |
| Setting accuracy (rpm) | 10 |
| Digital set/actual rpm display | yes |
| Display Mode | LED |
| Top Plate Area (W x L in mm) | 280*280 |
| Heating Zone (mm) | Ø190 |
| Mixing Capacity (L) H2O | 30 |
| Top Plate Material | Ceramic Glass |
| Housing material | Die-cast, coated with anti-corrosion material |
| Environmental conditions | -5? ~+40??Admissible air humidity 85% |
| Protection type / protection class | IP20, Level 1 |
| Temperature sensor connector | Pt100 |
| Interface | RS-232 |
| Dimensions (L x W x H in mm) | 450X282X115 |
| Max. load (kg) | 25 |
| Weight (kg) | 4.1 |
