Reaction Unit

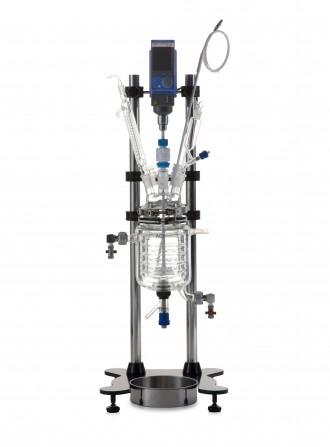

Reaction Unit Bench-top

Precise and efficient temperature control, minimum energy loss can be realized using our Reaction Vessel. You can choose the standardized (Blue Label) or custom-made (Gold Label) product depending upon your needs. We sincerely trust our Reaction Vessel with fitted Ring Baffle and Vacuum Jacket suits your needs. We have a variety of Vessel Options from Triple Wall with Ring Baffle, Triple Wall, Double Wall with Ring Baffle, Double Wall, and Single Wall. The volume option available are 300ml, 500ml, 1L, 2L, 3L and 5L.

Pricing & Availability Download Catalogue

Contact Us for better pricing. Warranty Details

Easy and quick to use
Most parts and components of Blue Label Lab reaction units are interchangeable.
For example, the glass cover (DN100) fits with all vessels in the series (300ml – 5liter). Anytime you want to carry out your reactions with different volumes, all you need to do is to change reaction vessel and stirrer
Easy Replacement
Many parts of Blue Label Lab series are replacable for simple repair and maintenance.
When you need to change a part of vessel (e.g.: Flush Valve, Metal Adapters for HTF, etc.) because of an unexpected situation, it is possible to simply replace only the part you want.
Low-cost Expandability
Since vessels in Blue Label series share common and interchangeable parts, you do not need to purchase a whole set for altering configurations of your reaction unit (e.g.: vessel size, condenser, dropping funnel, flush valve, etc.).
Blue Label Lab reaction unit series offers you expandability at low cost.

Specification :

Vessel Capacity	300 mL, 500 mL, 1 L, 2 L, 3 L, 5 L
Vessel Type	Double Wall (Jacket), Triple Wall (Jacket and Vacuum Jacket) *Optional Ring Baffles available for both type.
Operating Pressure	Full Vacuum to Atm
Operating Jacket Pressure	Up to +0.5 bar G (+0.05 Mpa)
Operating Temperature	-90°C to +230°C
Temperature	110°C (Double Wall), 60°C (Triple Wall)
