[Obsolete] Vectra 3 Automated Quantitative Pathology Imaging System

[Obsolete] Vectra 3 Automated Quantitative Pathology Imaging System

Vectra 3 has been superseded by PhenoImager Fusion.
Pricing & Availability Download Catalogue Akoya Biosciences
Brand: Akoya Biosciences
Contact Us for better pricing. Warranty Details

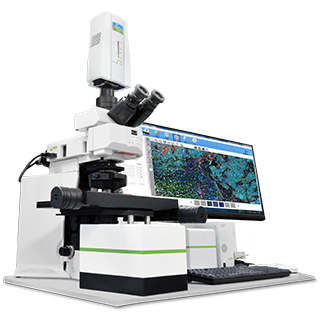

The Vectra®  3 automated quantitative pathology imaging system accurately detects and measures weakly expressed and overlapping biomarkers within a single H&E, IHC or IF intact FFPE tissue section or TMA to accelerate your cancer immunology research.

Features:

  • Supports Akoya’s Phenoptics™ workflow solution for cancer immunology research
  • Detects and measures multiple weakly expressed and overlapping biomarkers within a single H&E, IHC or IF tissue section and in TMAs
  • Visualizes, analyzes, quantifies and phenotypes immune cells in situ in solid tissues
  • Automated loading of up to 6 slides
  • Phenochart whole slide viewer for slide navigation provides context for identification of regions of interest within a digital pathology workflow
  • Automatic identification of specific tissue types using integrated inForm analysis software
Specification :
Tissue formats: Tissue microarrays (TMAs) and tissue sections
Spectral range: 440 – 720 nm (tunable)
Modality: Brightfield and Fluorescence (multispectral or color)
Scan time (1.5 cm x 1.5 cm sample): 5-band Fluorescence, 10x 8.0 minutes 5-band Fluorescence, 4x 2.5 minutes Brightfield, 10x 3.5 minutes Brightfield, 4x 0.8 minutes
Throughput – total time (1.5 cm x 1.5 cm sample, scan plus 10 MSI fields at 20x): 5-band Fluorescence, 10x 18 minutes 5-band Fluorescence, 4x 12 minutes Brightfield, 10x 10 minutes
Throughput for TMAs: 5 cores/minute (Brightfield, 0.6 mm core +10%)
Multiplexing capability: Separates up to 7 colors even if overlapping
Image Analysis Software (inForm): Intuitive learn-by-example interface to automatically segment and quantitate tissue structures, cells and sub-cellular signatures
Resolution: 4x (2.5 ?m/pixel), 10x (1 ?m/pixel) and 20x (0.5 ?m/pixel)
File format: Akoya Biosciences' whole slide scan image (qptiff), multispectral images (.im3), color images (JPEG, BMP, PNG)
Operating system: Microsoft® Windows® 7 64-bit
Computer: Dual Quad-Core processors with 1 Terabyte for data storage
